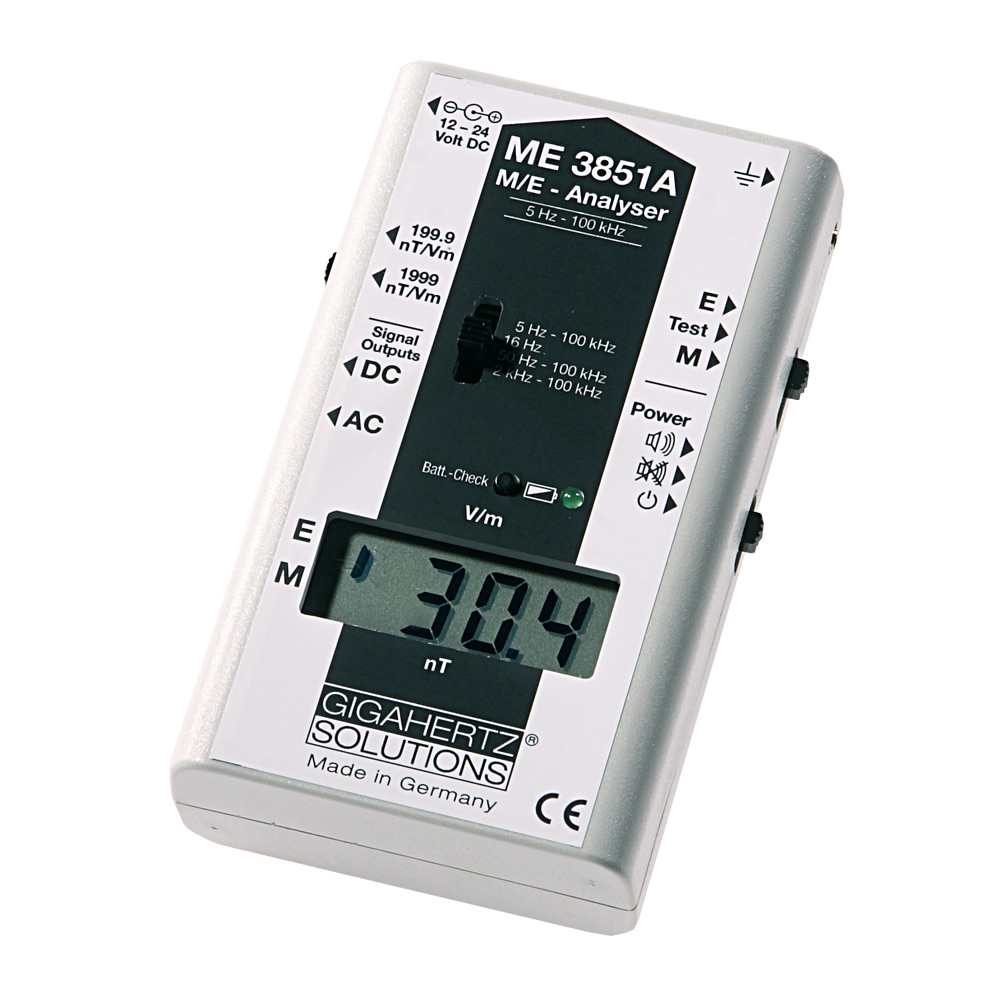

Gigahertz ME3851A low frequency measuring instrument for measuring electrosmog

Professional low frequency measurement with the ME3851SA low frequency analyzer. Low frequency measurement for professionals - made in Germany!

Product information

Fast delivery!

Delivery time approx. 5 working days

€491.95

Prices incl. VAT plus shipping costs

Manufactured in
GERMANY

Verified & Safe purchase
GoGreen Shipping
14 days refund policy

Close menu

Product information

The low frequency measuring instrument for professionals:
Step into the world of professional low-frequency measurement with the ME3851A measuring instrument, which meets the requirements of professionals and beginners alike. The functions are perfectly tailored to modern biological building practice. The ME3851A, like all measuring instruments from Gigahertz Solutions, is manufactured in Germany and leaves the company only after a thorough quality control. Frequency Range: 5 Hz - 100 KHz (compensated, better than -2 dB)
Internal, switchable frequency filter: 16 Hz bandpass, 50 Hz high-pass, 2 kHz high-pass for biological building analyses to identify railway and mains current as well as higher-frequency harmonics.

In comparison to the ME3840B, the ME3851A offers these additional functions:

Factor 10 more sensitive (lowest display resolution: 0.1 nT / 0.1 V/m)
NiMH rechargeable battery, charging control and power supply included
AC and DC output
Safety through test circuit for the zero point deviation
Also suitable for potential-free electric field measurement (one-dimensional)

Performance characteristics and technical data:

Frequency range: 5 Hz - 100 KHz (compensated, better than -2 dB).
Internal, switchable frequency filter: 16 Hz bandpass, 50 Hz high-pass, 2 kHz high-pass for building biology analyses to identify railway and mains current and higher frequency harmonics.
Measuring range: magnetic flux density (one-dimensional): 0.1 - 1999 nT Electric field strength: 0.1 - 1999 V/m
Accuracy: +/- 2 %, +/- 7 digits @ 50/60 Hz
Sensor: E-field sensor for electric AF alternating fields
H field sensor for magnetic alternating AF fields (one-dimensional)
Audio analysis: sound signal proportional to field strength (with "Geiger counter effect", can be switched on)
Power supply: 9-volt NiMH battery (included in delivery), average operating time: 8 hours low battery display, auto power-off function (capacitance-saving and deactivated for long-term measurements)
Power supply / charger (included in delivery)
Signal evaluation: RMS
Signal outputs: AC-/DC outputs
Other: Two years warranty
Weight: 1.63 kg

Scope of delivery:

Measuring instrument
Highly flexible earthing cable with 1 mm² copper diameter
Earth clamp
Internal NiMH battery
Power supply/charger
Comprehensive operating instructions
Case

Country of origin

Manufactured in
GERMANY

ALLGEMEINE DATEN

Dimensions: 3,1 x 7,4 x 12,2 cm

Weight: 1,63 kg

guarantee: 2 Jahre

included in delivery: Messgerät, Hochflexibles Erdungskabel mit 1 mm² Kupferdurchmesser, Erdungsklammer, Interner NiMH-AkkuNetz-/Ladegerät, Ausführliche Bedienungsanleitung, Koffer

Equiqment

Audioanalyse: Feldstärkeproportionales Tonsignal (mit Geigerzähler-Effekt, zuschaltbar)

Frequenzfilter:: intern, schaltbar: 16 Hz Bandpass, 50 Hz Hochpass, 2 kHz Hochpass für baubiologische Analysen (Eisenbahn-, Netzstrom, höherfrequente Oberwellen)

Features

Auto Power off: ja

signal outputs: AC-/DC-Ausgänge

signal information: RMS

frequency range: 5 Hz - 100 KHz (kompensiert, besser als -2 dB)

high frequency (mobile communications): nein

power supply: 9-Volt NiMH-Akku (im Lieferumfang), Ø Betriebsdauer 8 Stunden

battery life: 8 Stunden

measuring range electrical alternating fields: 0.1 - 1999 V/m

measuring range magnetic flux density: 0.1 - 1999 nT

measurement accuracy: ± 2% dB, +/- 7 digits @ 50/60 Hz

Display: 3.5 stelliges Flüssigkristalldisplay
