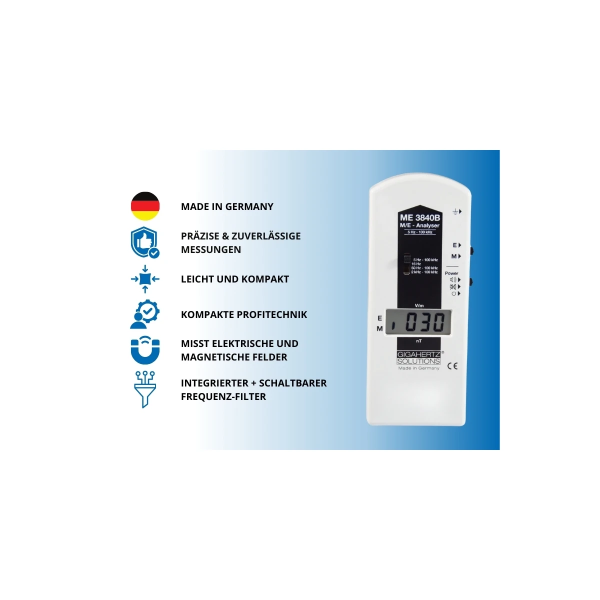

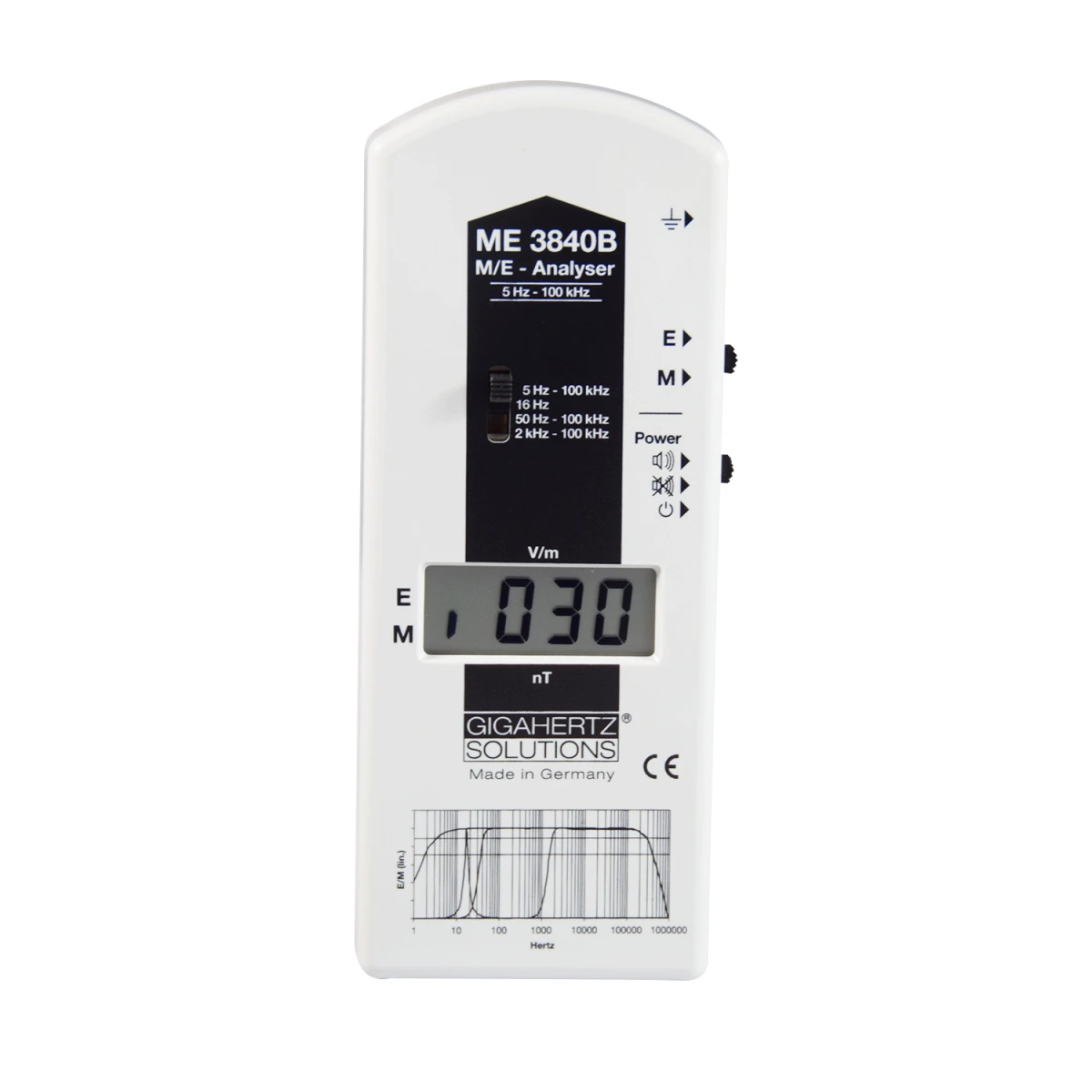

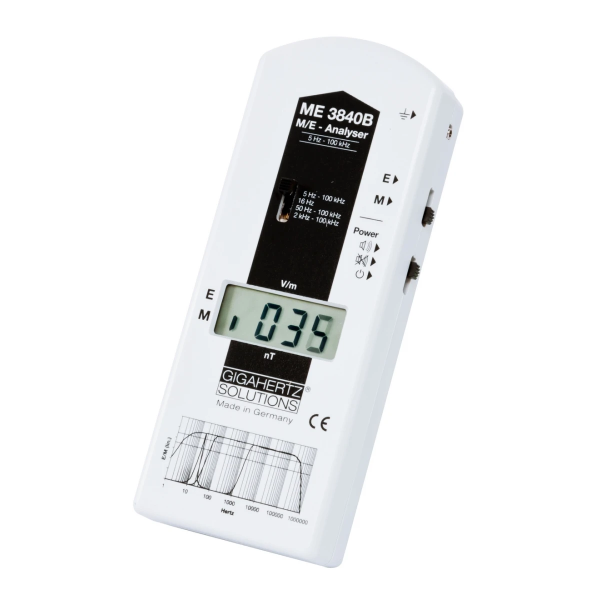

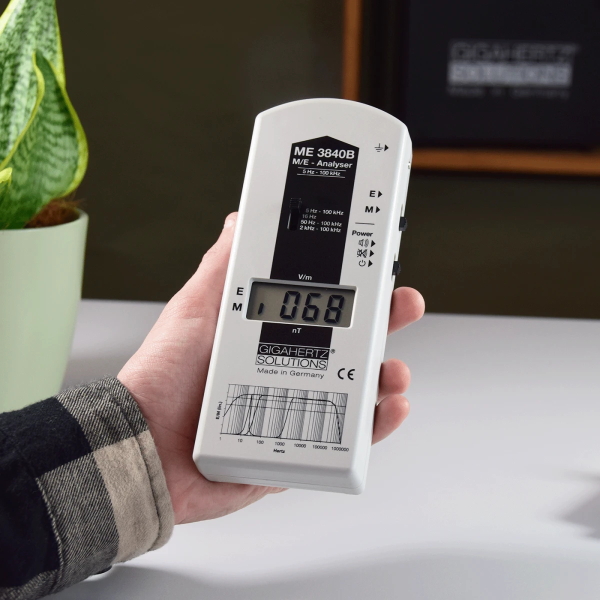

Gigahertz Solutions ME3840B Low-Frequency Analyser for Electric and Magnetic Fields

Order number:

42284

Gigahertz Solutions ME3840B Low-Frequency Analyser for Electric and Magnetic Fields

ME3840B meter for low-frequency electric and magnetic fields from 5 Hz to 100 kHz with switchable frequency filters and audio analysis.

Product information

Fast delivery!

Get it as soon as 28.09.2026

€177.85

inkl. MwSt. zzgl. Versandkosten
AT:30€ Mindestbestellwert – der Umwelt zuliebe.

Verified & Safe purchase
GoGreen Shipping
14 days refund policy

Close menu

Product information

The Gigahertz Solutions ME3840B is a low-frequency analyser for measuring alternating electric and magnetic fields. With a frequency range from 5 Hz to 100 kHz, it supports both general measurements and more detailed analysis of different frequency ranges.

Its integrated switchable filter module allows separate assessment of frequency ranges associated with railway power, mains electricity and higher-frequency harmonics. Electric field strength is displayed directly in V/m and magnetic flux density in nT.

A switchable field-strength-proportional audio signal also helps locate and compare field sources during measurements.

Key Product Features

measures low-frequency AC electric and magnetic fields
wide frequency range from 5 Hz to 100 kHz
integrated switchable frequency filter module
direct readings in V/m and nT
enables differentiated analysis of frequency ranges
switchable field-strength-proportional audio signal
LCD display with 1 V/m and 1 nT resolution
low-battery indicator
automatic power-off
battery-powered operation

Measuring Ranges and Frequency Filters

The ME3840B measures:

electric field strength: 1–1999 V/m
magnetic flux density, single-axis: 1–1999 nT
frequency range: 5 Hz–100 kHz

Three switchable filters are available for further analysis:

16 Hz band-pass
50 Hz high-pass
2 kHz high-pass

These filters allow different frequency components to be assessed separately and help narrow down potential field sources.

Sensors and Measurement Method

The ME3840B has a sensor for low-frequency AC electric fields and a single-axis sensor for low-frequency AC magnetic fields.

Signal evaluation uses RMS measurement. The manufacturer specifies an accuracy of ±2% ±14 digits at 50/60 Hz.

Audio Analysis

The switchable audio signal changes in proportion to the measured field strength, allowing changes to be followed acoustically while locating field sources.

Power Supply

The meter operates with a 9 V alkaline block battery. Average operating time is approximately 24 to 36 hours depending on the selected operating mode.

A low-battery indicator and automatic power-off function are included.

Pack Contents

Gigahertz Solutions ME3840B low-frequency analyser
grounding cable
9 V alkaline battery
detailed operating instructions with background information

Product Details

Product type: low-frequency analyser
Measurements: electric field strength and magnetic flux density
Frequency range: 5 Hz–100 kHz
Electric measuring range: 1–1999 V/m
Magnetic measuring range: 1–1999 nT
Display resolution: 1 V/m / 1 nT
Frequency filters: 16 Hz band-pass, 50 Hz high-pass, 2 kHz high-pass
Signal evaluation: RMS
Audio analysis: yes
Magnetic sensor: single-axis
Power supply: 9 V alkaline battery
Operating time: approx. 24–36 hours
Low-battery indicator: yes
Auto power-off: yes
Product weight stated by manufacturer: approx. 0.40 kg
Warranty: 2 years

Manufacturer details

Gigahertz Solutions GmbH

Im Kessel 2
90579 Langenzenn
info@gigahertz-solutions.de

Features

Audioanalyse: Feldstärkeproportionales Tonsignal

high frequency (mobile communications): nein

battery life: 24 bis 36 Stunden

measuring range electrical alternating fields: 1 - 1999 V/m

measuring range magnetic flux density: 1 - 1999 nT

low frequency (domestic electricity): ja

Auto Power off: ja

sensor: E-Feldsensor für elektrische NF-Wechselfelder H-Feldsensor für magnetische NF-Wechselfelder

ALLGEMEINE DATEN

Weight: 0,4 kg

guarantee: 2 Jahre

Property	Value
Dimensions l x w x h	180 × 74 × 32 mm
frequency range	5 Hz–100 kHz
Frequenzfilter:	16-Hz-Bandpass, 50-Hz-Hochpass, 2-kHz-Hochpass
power supply	9-V-Blockbatterie, Alkalimangan
Display	LCD-Display, Auflösung 1 V/m bzw. 1 nT
measurement accuracy	±2 % ±14 Digits bei 50/60 Hz
signal information	RMS
included in delivery	ME3840B Messgerät, Erdungskabel, 9-V-Alkalimanganbatterie, ausführliche Bedienungsanleitung
