Buy mains decoupler NA7 Comfort from Gigahertz Solutions online

You can effectively reduce low-frequency field loads at home with the NA7 mains decoupler. The mains decoupler is installed in the fuse box, where it automatically disconnects the circuit from the mains as soon as the last consumer is switched off. This circuit then no longer emits any interfering electric fields. Such a measure is particularly useful for the sleeping area.

If all consumers are switched off, the lines of the circuit are disconnected from the mains voltage and thus the load from alternating electric fields is zero.

> If consumers are switched on again, the mains decoupler also switches on automatically - electricity flows again without delay. The NA7 comfort mains isolator with VDE symbol is the best-selling mains isolator switch from Gigahertz Solutions. It interrupts the mains voltage already in the fuse box as long as no current is needed. Installation must be carried out by a qualified electrician. Operation is simple, no settings are required. The NA7 also works perfectly with electronic consumers.

The technical functions and features of the NA7 network decoupler:

• Rated switching capacity (Ampere at 250 V AC): 16

• Residual ripple (typ.) (in millivolts): <4

• Mains voltage also manually switchable

• System control lamp included in delivery

• LED-supported residual current display for function diagnosis for even simpler installation and operation

The VDE symbol stands for the highest level of personal and equipment protection.

Technical data of the network decoupler NA7:

• Rated power:
  Rated voltage / load capacity: 16 A, 230 VAC +/- 10%, 2300 Watt Incandescent lamp load
  Mechanical lifetime of the relay: approx. 15,000,000 switching cycles.
  1-pole switch-off: for optimum rated voltage / load: 16 A, 230 VAC +/- 10%, 3500 Watt incandescent lamps

• Residual ripple:
  < 2 mV / < 4 mV / < 8 mV (nominal/typical/maximum)
  Monitoring voltage: Building biologically compatible low-current DC voltage (max. 8 mA / 230 VDC)

• Other:
  VDE mark, ID number: 40000677
  Safety: Overvoltage resistant according to IEC 1000-4-4 (Burst) and IEC 1000-4-5 (Surge) Clearances and creepage distances according to EN 600065 / VDE0860 are maintained. Housing: DIN rail mounting according to DIN-EN 50 022 for domestic fuse box

• Weight: 0.2 kg

Included in delivery:

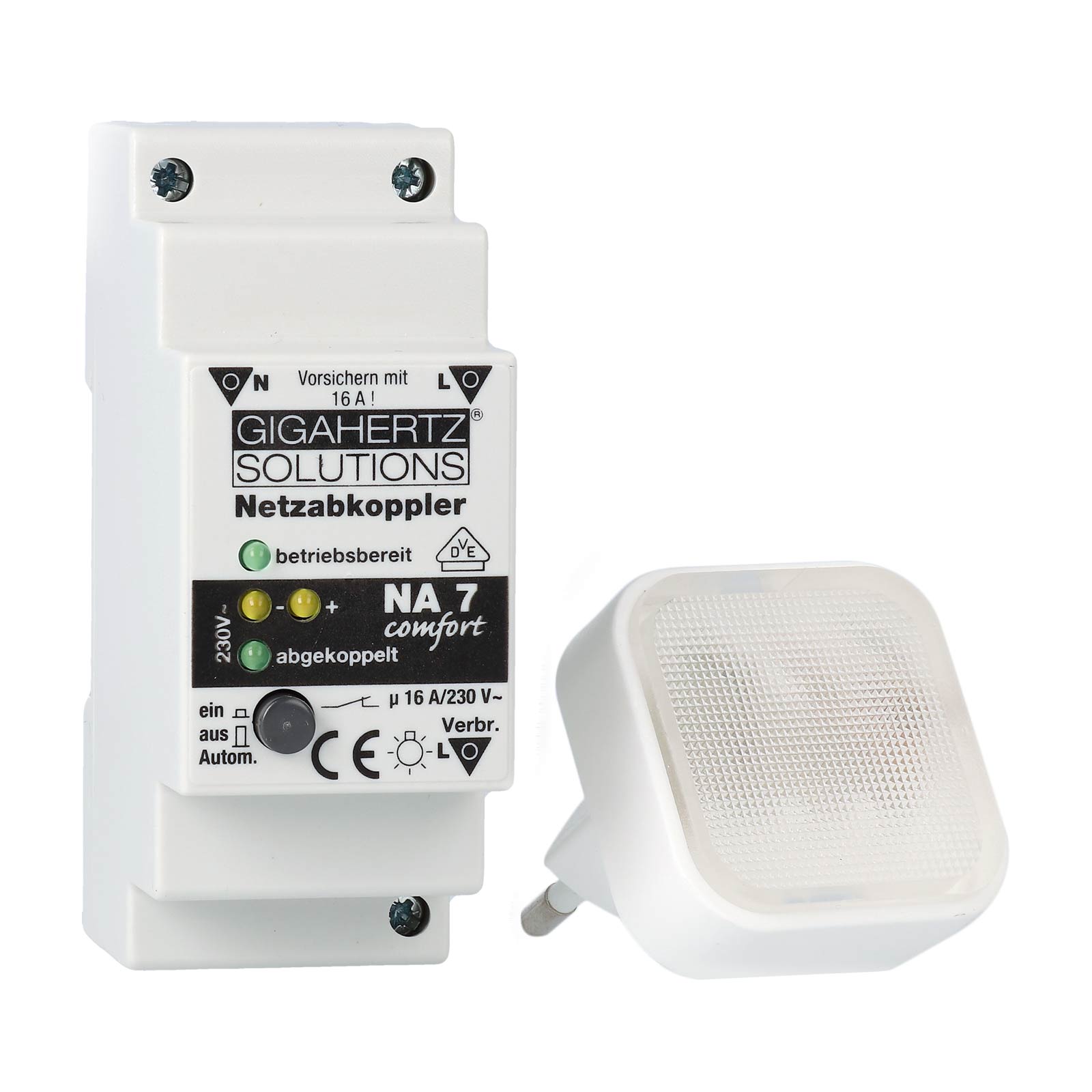

Mains decoupler NA7
System control lamp
Instruction manual
