HFE35C high frequency analyzer measures precise high frequency radiation

Gigahertz Solutions HFE35C high-frequency analyzer lets you reliably measure high-frequency radiation & evaluate exposure

Product information

Fast delivery!

Get it as soon as 12.05.2024

€993.70

Prices incl. VAT plus shipping costs

Manufactured in
GERMANY

Verified & Safe purchase
GoGreen Shipping
14 days refund policy

Close menu

Product information

Measure high-frequency radiation with the HFE35C high-frequency analyzer set in order to determine suitable remedial measures.

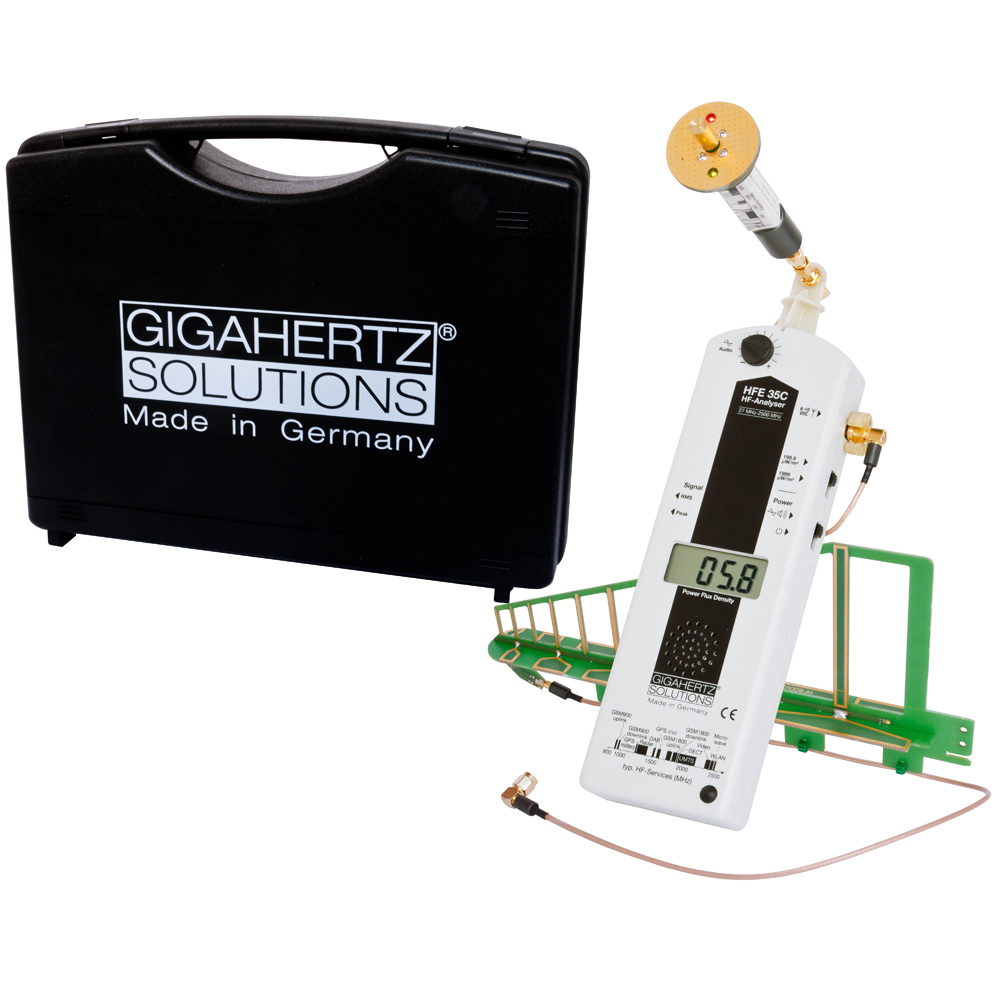

High-quality set with the following components:

Actual measuring device based on the HFE35C, only with extended frequency range down to 27 MHz.
Specifically compensated LogPer antenna for the range above 800 MHz.
Horizontal isotropic ultra wideband antenna UBB27_G3 from 27 MHz to above 2.7 GHz (limited by the frequency response of the HFE35C).
Small plastic case K5 with foam insert for safe transport of the measuring device with the two antennas.

Specifications of the HFE35C high-frequency analyzer set:

Frequency range: 27 MHz up to over 2.7 GHz
Measuring range: Power flux density: 0.1 - 1999 µW/m²
Accuracy: Basic accuracy including linearity error: +/- 6 dBZero point deviation and special digitization error ("rollover"): +/- 9 digits
Sensor: Logarithmic-periodic measurement antenna with frequency response compensated directly on the antenna Quasiisotropic ultra wideband antenna ("omni antenna") adjusted for vertically polarized fields
Audio analysis: Modulation frequency and field strength proportional audio signal supports the identification of pulsed radiation sources (GSM, DECT, etc.) and the detection of increased exposure.
Power supply: 9-volt E-block alkaline manganese battery (included), average operating time: 4 - 7 hours (depending on operating mode) Low battery indicator, Auto power off function
Signal evaluation: Peak value and average value display
Other: Two years warranty
Weight: 1.06 kg

Scope of delivery:

Measuring instrument
Pluggable LogPer and UBB antenna
Detailed operating instructions with neutral background information
Delivery in case

Country of origin

Manufactured in
GERMANY

ALLGEMEINE DATEN

Dimensions l x w x h: 3,2 x 7,4 x 22,5 cm

Weight: 1,06 kg

guarantee: 2 Jahre

included in delivery: Messgerät, aufsteckbare LogPer- und UBB-Antenne, Alkalimanganbatterie, ausführliche Bedienungsanleitung mit neutralen Hintergrundinformationen, Koffer

Features

aerial size: 25,0 x 3,0 x 12,0 cm

frequency range: 27 MHz - 2,7 GHz

high frequency (mobile communications): ja

measuring range power flux density: 0,1 - 1999 µW/m²

battery life: 4 - 7 Stunden

power supply: 9-Volt E-Block Alkalimanganbatterie

measurement accuracy: ± 6 dB

Display: 3,5 stelliges LCD

low frequency (domestic electricity): nein

Auto Power off: ja

sensor: Logarithmisch-periodische Messantenne mit direkt auf der Antenne kompensiertem Frequenzgang Quasiisotrope Ultrabreitband-Antenne
