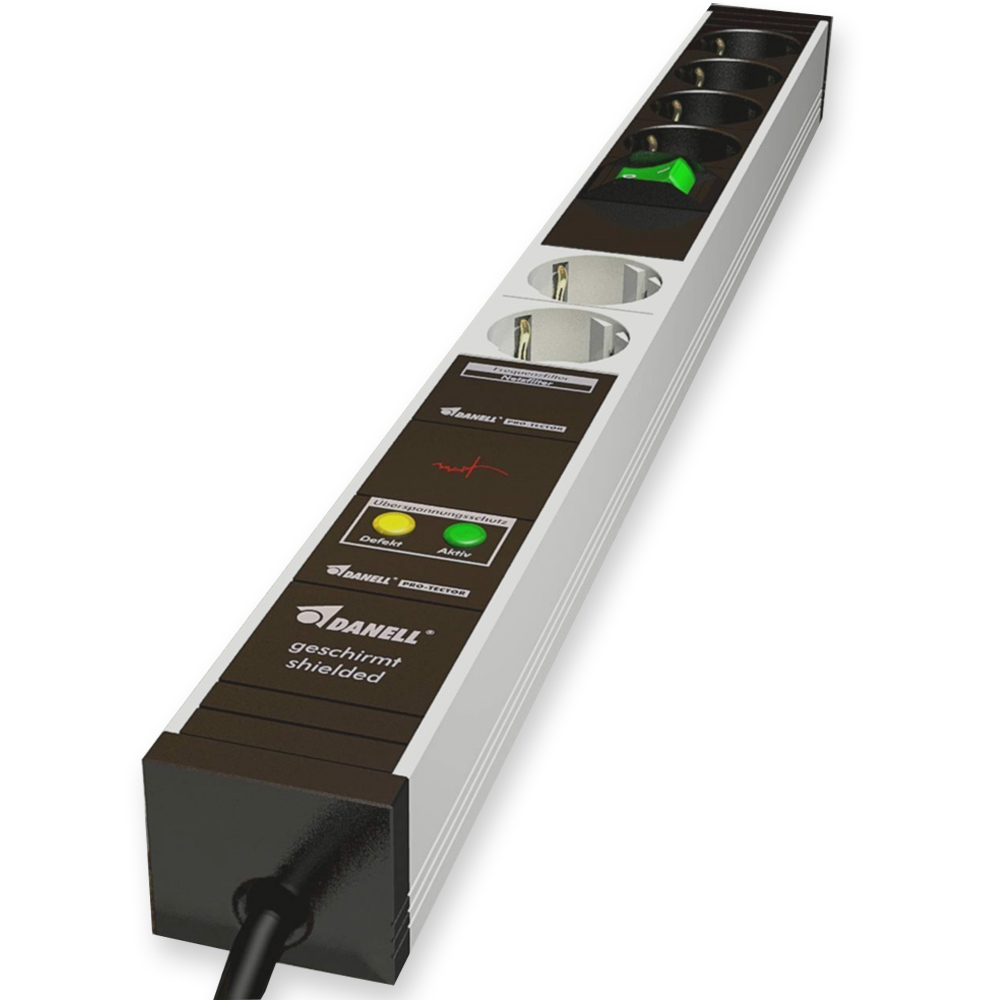

Shielded socket strip with overvoltage protection 6-fold

Technical data of the computer socket strip, 6-fold
Switch 2-pole,
o Overvoltage protection, mains filter, 2x not switched, 4x switched
Socket inserts black, 45° inclined, incl. child protection,
Mains connection cable: 2 m (-10%) - 3 x 1.5 mm2
Current load: 16 A according to IEC 884,L2 Dimensions: 572 x 52 x 45 mm (L x W x H, without cable)

Overvoltage protection: PRO-TECTOR (all socket outlets)
Arrestors: Varistor and gas overvoltage arrester
Rated arrester voltage: 300 V AC
Rated leakage current (8/20 µs): 6500 A
Guaranteed protection level: <1000 V at 6500 A (8/20 µs)
Response time: <25 ns
Requirements class construction: according to VDE 0675, part 6, class D
Overvoltage protection: lights up green
with intact protective function (2 different indicators) lights up red

in case of defective protective function Filter system full protection: PRO-TECTOR (all socket outlets)
Mains and HF filters: Permissible operating current up to 16 A
Mains filter: up to 50 dBm (factor 100 000)
attenuation HF (high frequency) filter: over 80 MHz (also filters PLC frequencies - Internet from the socket)

Applications: Continuous current for telephone system and fax machine, switched inserts for computer, monitor, printer, TV and phono equipment, etc.

The shielded computer socket strip has two grey inserts for continuous current which cannot be switched off, e.g. for fax. Powerful mains filter and high-frequency filter with very high attenuation. Overvoltage protection category II according to DIN VDE 0110 part 1.

Shielded socket strip to reduce electrosmog
With a shielded socket strip you can reduce the field load caused by electric and magnetic fields in the living area.
